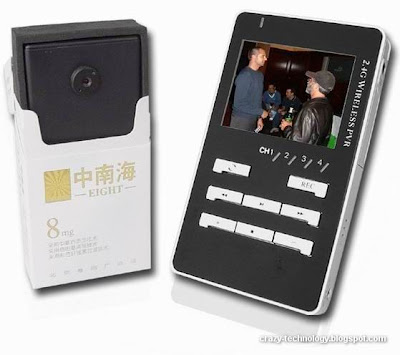

Cigarette Box Covert Wireless Camera with MP4 Receiver

Super cool wireless covert pinhole camera fitted into a silicon rubber casing for hiding into any standard sized cigarette box plus a high quality wireless MP4 receiver. When fitted into a cigarette box, this pinhole wireless camera becomes almost undetectable to the human eye. Incredibly easy to set up, all you need is to poke a hole in the cigarette box, set the MP4 receiver to the correct channel, and you will be able to see and record whatever the camera sees. This is a gadget worthy of James Bond. It is available anywhere in the world.

Receiver Specifications

  • Receiving Frequency: 2.4GHz

  • Intermediate Frequency: 480Mhz

  • Frequency Stabilization: +/-100Khz

  • Demodulation Mode: FM

  • Antenna: 50ohm SMA

  • Receiving Sensitivity: <-85dBm

  • Power Source: Built in Rechargeable Li-ion Battery

  • Dimension: 120x68x25mm (LxWxD)

  • Channels Available: 4

  • Channel Scan and Channel Skip for multiple Cameras


    MP4 Receiver Specifications

  • Memory: 64MB

  • External Memory: SD/MMC Card (max 2GB)

  • Display: 2.5 Inch TFT LCD

  • Video Format: MPEG-1/4, AVI/ASF/ADPCM Video Resolution: 882x240 FPS (Frames per Second): 30fps

  • Music Format: MP3

  • Bit rate: 32-320Kbps

  • Picture Format: JPG, JPEG

  • Earphone Jack: 3.5mm

  • SNR (Signal to Noise Ratio): 60dB

  • Output of earphones: 20mW x 2 (16Ohm)

  • Output of Speaker: 1W (16Ohm)

  • Languages: English, Chinese

  • USB: 2.0

  • System: Windows 98/SE/ME/2000/XP

    Camera Specifications

  • Image Device: 1/4 inch sharp CCD

  • TV system: 628x582(PAL)/ 510x492(NTSC)

  • Horizontal Definition: 420

  • Angular Field of View: 38 deg

  • Minimum Illumination: 0.5Lux/F1.5

  • Synchronization System: Internal

  • Backlight Compensation: Auto

  • White Balance: Auto

  • S/N Ratio: >48dB

  • Operation Temperature: 0 ~ 5 deg C

  • Transmission Frequency: 2.4GHz

  • Locked Frequency

  • Power Adapter: DC 5V

  • Dimension: 62x48x15mm (LxWxD)

  • Recommended Max Range for Objects: 2~3 Meters

  • Transmission Range: 10~15 Meters

  • Rubber Silicon case for fitting in Cigarette box
